Diamond Drill Bits Set for Your Dremel Tool
This exciting set is just what you're looking for if you have a Dremel Rotary Tool and wish to start drilling small holes in pebbles, drilling holes in sea glass, shells or pieces of china and ceramic.
Set contains the following:
- Dremel Multi Chuck 4486
- 1mm Small Diamond Drill bit
- 1.5mm Small Diamond Drill Bit
- 2mm Small Diamond Core Drill
- 3mm Small Diamond Core Drill
Perhaps you've just bought a Dremel 3000, Dremel 4000, or a Dremel flexible shaft 225 and would like to start making your own jewellery or accessories? This is the perfect starter kit for you. Read the next description tab to find out more...
Description
Dremel Multi Chuck
Use with rotary tool models 3000, 4000, 8220, Lite, 4300, Stylo+, Micro, 7700, 8100, 8200, 200.
Also use with Dremel attachments 212, 225, and 575. Not for use with 4200.

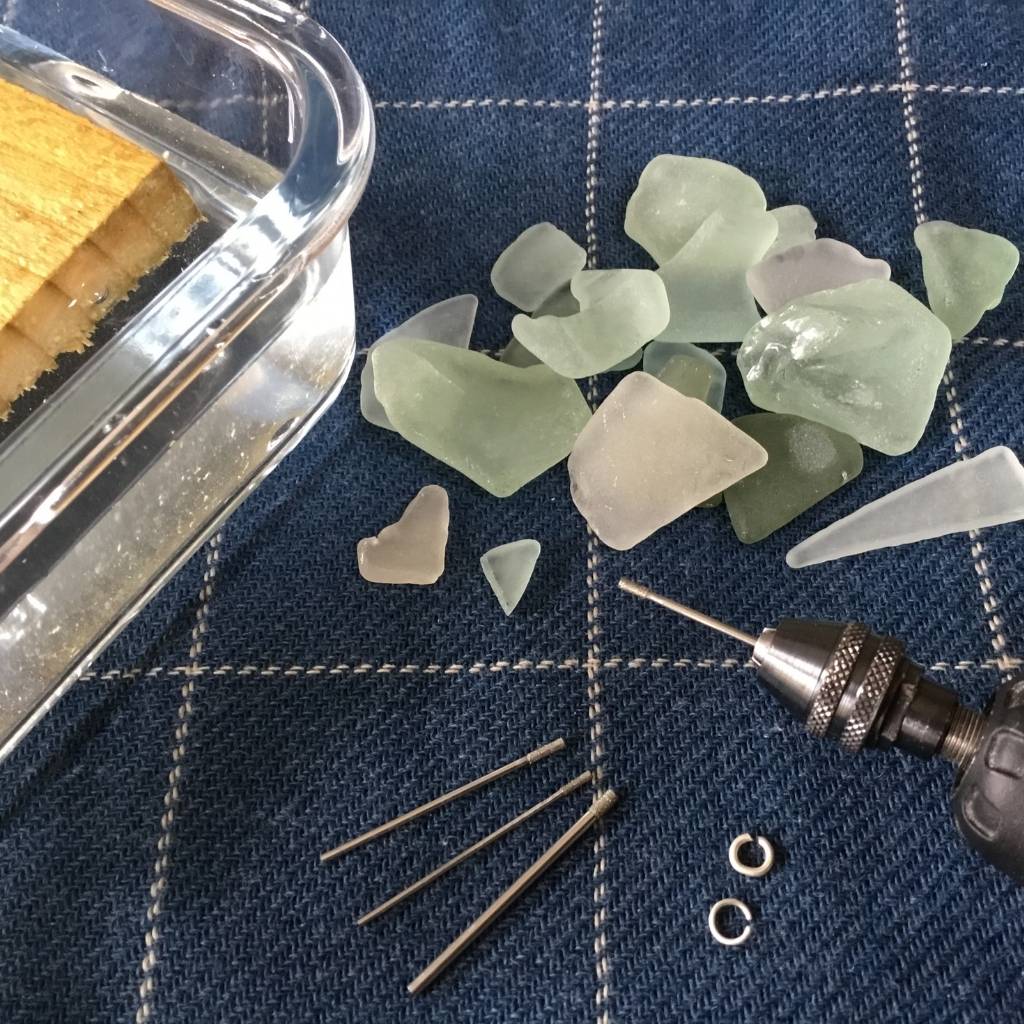

This set contains some of our most popular size diamond drill bits along with a Dremel Multi Chuck to hold them with and will allow you to drill holes in a number of hard materials:
- Drilling holes in pebbles, small stones or slate pieces
- Drilling holes in Sea Glass, beach glass or small glass work
- Drilling holes in shell or bone
- Drilling holes in pieces of china, ceramic, porcelain, beach pottery, glazed pottery
Simply attach the Multi Chuck to your Dremel Tool and using one of the diamond drill bits or diamond core drills start drilling and create something beautiful. Always remember to:
- Use diamond drill bits wet to ensure cleaner cutting, and preserve the life of your drill bit
- Set your Dremel Multi Tool to the lowest speed setting
- Use very little pressure
- Always use protective eye wear and a mask
We have a number of easy-to-follow tutorials on how to drill holes in hard materials, take a look at these for some guidance:
How To Drill Pebbles: http://www.eternaltools.com/blog/how-to-drill-peb...
How To Drill Through Glass: http://www.eternaltools.com/blog/how-to-drill-through-glass-infographic
Some helpful notes and possible queries about the contents of your kit:
There are two Dremel attachments that can be used to hold these small diamond drill bits, the Dremel Multi Chuck 4486 which you have in your set, and the Dremel Collet Nut Kit4485. We have chosen the Multi Chuck for you as it is very popular when using drill bits and attachments that have different shanks (the end that goes into your rotary tool, not the drilling bit end) as it is easy to change between drill bits. Simply twist to open the teeth on the chuck and release or tighten in the new drill bit.
The Dremel Multi Chuck 4486 will fit all Dremel Drills except Model 4200.
Your set has two popular sizes of Small Diamond Drill Bits: 1mm and 1.5mm and two popular sizes of small diamond core drills: 2mm and 3mm. These sizes have been chosen as they are ideal for most jewellery making purposes when you need to make a hole in hard materials. All these drill bits and more can also be bought by clicking here.
The small diamond drill bits have a solid end and the small diamond core drills have a hollow core running through the drill bit. This core allows water to swirl up and around the core to keep the drill bit cool and they are particularly good for those extra tough pieces of sea glass, fused glass or stones. They have a smaller surface area than the small diamond drill bits so may not last as long but are equally good at drilling your holes.
More answers about diamond drill bits and drilling can be found in this informative article here: http://www.eternaltools.com/blog/12-things-you-sh...
Technical
Dremel Multi Chuck 4486
- Dimensions: 10 x 5.1 x 2.5cm
- Weight: 18g
Small Diamond Drill Bits
- Diameter: 1mm and 1.5mm
- Overall Length: 38mm
- Diamond tip length: 4mm
Small Diamond Core Drills
- Diameter: 2mm and 3mm
- Overall length: 65mm
- Diamond tip length: 4-6mm
Questions & Answers
Ask a question using the form below
Other questions and our answers
Hello,
I have enjoyed your website and blog!
I have a Dremel Micro 8050 N/18. Would this drill bit set fit?
Thank you,
Lauren Sayers
Lauren
Thanks Lauren, that's great to hear. The Dremel Multi chuck can be used with their rotary tool models 4000, 400, 3000, 398, 395, 300, 285, 275, 200, 100, 8220, 8200, 800, 780, 770, 7700, 750, 8050.
So, yes this will be compatible with your rotary tool. Happy Drilling!
Will this diamond drill bit set fit my Dremel 7700 series?
Yes this drill bits set will fit your Dremel 7700.
do these diamond drill bits work with the Dremel 3000?
patricia
Yes, the Dremel Multi Chuck 4486 included with this set works with most Dremel models, inlcuding the Dremel 3000.
Please could you advise whether the diamond drill bits will drill holes in quartz beach stones? Thank you.
Julia
You will need to use the small diamond drill bits, of which this set has two, 1 x 1mm and 1 x 1.5mm
Please note that any pebble that has Quartz or flint running through it are the hardest to drill and take the longest to drill, have a read of the section entitled 'Choosing a good pebble to drill' in this article we wrote: How To Drill Pebbles
Does this kit fit the new Dremel Micro ?
Thx in advance
Cecilie
Cecilie T. Jacobsen
This kit will fit the Dremel Micro 8050, also models: 4000, 400, 3000, 398, 395, 300, 285, 275, 200, 100, 8220, 8200, 800, 780, 770, 7700, 750
I need a drill and small bits to put small holes into pebbles, these need to be wet (sat in a shallow tray of water to do this) is this item suitable? Thank you Samantha :)
Samantha Edwarda
Yes, we have just the tools. Use a Dremel 3000 drill with the Dremel collet nut kit or a Dremel Multi Chuck and some small diamond drill bits. You might like the Diamond Drill Bits set for your Dremel. This set contains 2 x small diamond drill bits and 2 x small diamond core drills, in different sizes, all ideal for drilling holes in pebbles. Our article on How to Drill Pebbles might also be helpful for you. If you want to buy the diamond drill bits individually without being part of the set please click here.
