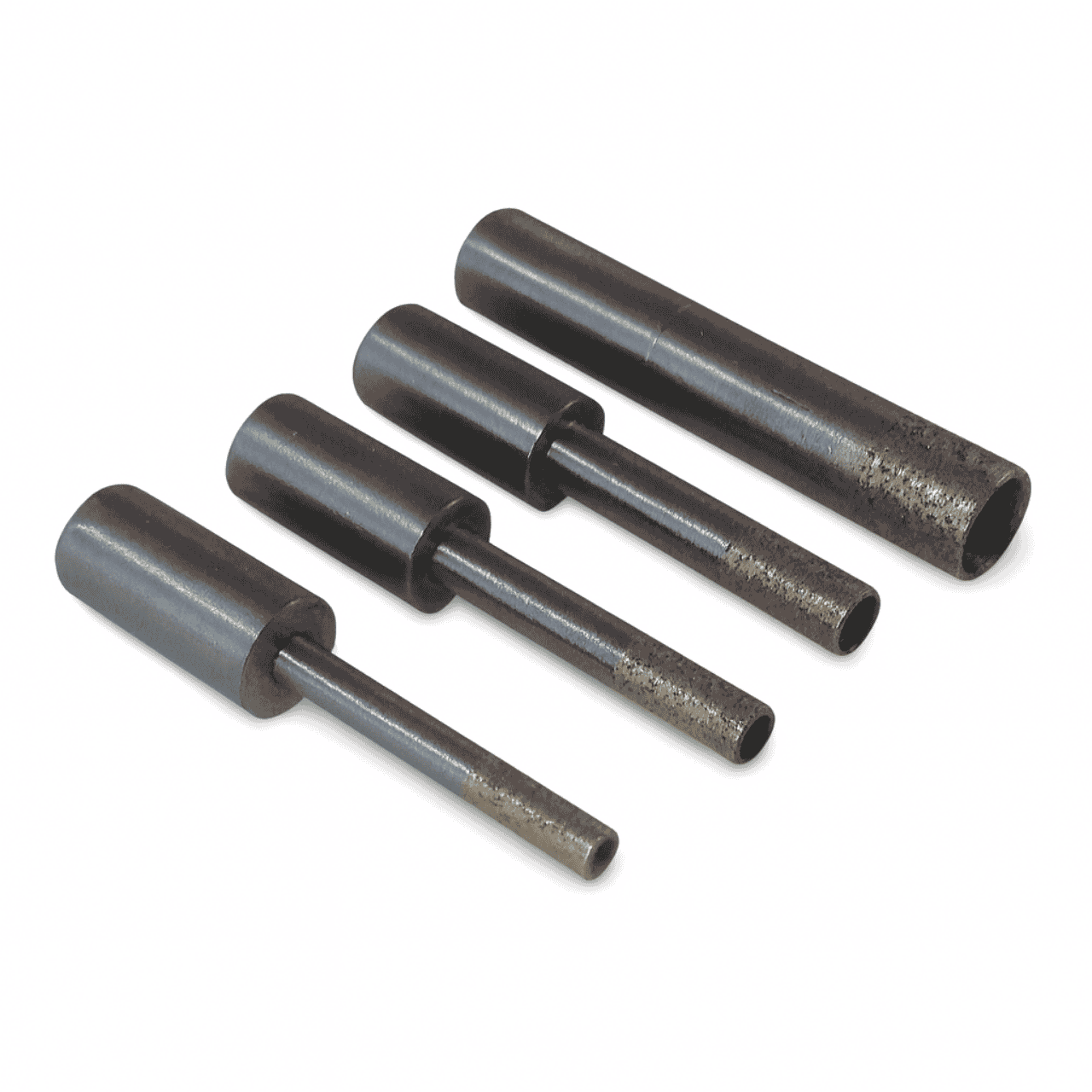

Sintered Diamond Core Drills

SINDCD

Sintered diamond core drills have a superior cutting and speed efficiency, and unlike electroplated or coated drills they have several layers of diamond grit instead of just one, allowing you to drill thousands of holes.

These Diamond Sintered core drill bits are our premium range of diamond drill bits for drilling through hard materials such as glass, stone, marble, ceramic, porcelain, limestone, sandstone, granite, quartz, brick and concrete.

Clean and dress, your Sintered Drill bits before use, and after each use with an Aluminium Oxide Stick to reveal a fresh layer of diamond grit each time.

Please use with water to keep the drill bit and your material cool whilst drilling. Use on a slow speed , with little pressure.

**Many other sizes available, up to 94mm. Please contact us for a price**

Earn 0 reward points
£0.00 £48.00

Size

QTY:
Out Of Stock
Add To Wishlist

Want to be notified when this product is back in stock?
Complete the form below and we'll send you an email when it is.

Description

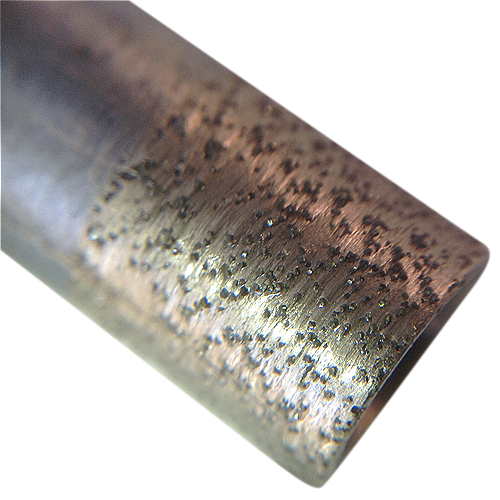

Sintered diamond has been bonded to the matrix at very high temperatures and therefore has several layers of diamonds which by dressing or cleaning with an aluminium oxide stone will help maintain the life of your drill bit,  revealing a new layer of diamonds each time.

This means that the life of these drill bits can last 10 - 20 times longer than coated diamond drill bits.



Technical

4mm Diameter

  • Overall length: 49mm
  • Approx. inner core diameter: 2mm
  • Shank: 10mm
  • Diamond working length: 10mm

5mm Diameter

  • Overall length: 49mm
  • Approx. inner core diameter: 3mm
  • Shank: 10mm
  • Diamond working length: 10mm

6mm Diameter

  • Overall length: 49mm
  • Approx. inner core diameter: 4mm
  • Shank: 10mm
  • Diamond working length: 10mm

10mm Diameter

  • Overall length: 54mm
  • Approx. inner core diameter: 8mm
  • Shank: 10mm
  • Diamond working length: 10mm
